RMAN Restore and Recover for Multitenant Architecture

In this demo I will show how to handle different types of RMAN restore and recover in a Multitenant environment.

In a Multitenant environment for cloud supporting data centers we will have container databases on many servers with one to many pluggable databases. These container and pluggable databases will have different database administrators and different SLAs.

I will show how we can recover and restore the container database as a whole or one to many pluggable databases.

CDB = Container Database
PDB = Pluggable Database

Environment

CDB- TESTDBS
PDB- DEV1DB, DEV2DB and TSTDB

Demo


I want to grant a mid-level DBA privileges to only have access to recover and restore the CDB as a whole or just one or many PDBs.

The DBAs name is Jane Doe and she will have access to the database server. She will log in to the server with her own account.




Create OS Group and User

$groupadd backupdba
$useradd -g oinstall -G backupdba jane_doe
$password jane_doe



Create Common User

Common users are database accounts that only exist in a Multitenant environment. Common users are accounts that exist in the root CDB and all PDBs plugged into the CDB. Common users names need to start with C## or c##.

I will create a common user called C##ORADBMAINT which our DBA Jane Doe will have the password to log into the CDB and PDB.
In database 12c there is a new database system privilege called SYSBACKUP. In reviewing the SYSBACKUP database system privilege it has the same system privileges as the database system privilege SYSOPER.

Below you will see CONTAINER=ALL meaning that the statement executes in the root CDB and all PDBs plugged into the CDB.

$sqlplus / as sysdba
SQL>CREATE USER C##ORADBMAINT PROFILE DEFAULT IDENTIFIED BY temp1234 DEFAULT TABLESPACE USERS TEMPORARY TABLESPACE TEMP ACCOUNT UNLOCK CONTAINER=ALL;
SQL>GRANT CONNECT TO C##ORADBMAINT CONTAINER=ALL;
SQL>GRANT SYSBACKUP TO C##ORADBMAINT CONTAINER=ALL;



In the CDB or PDB we can review who has the sysdba, sysoper or sysbackup privileges granted.
  • $sqlplus / as sysdba
  • SQL>select * from v$pwfile_users;


























Restore and Recover CDB

In this restore we need to recover the CDB due to a full loss of spfile, datafiles, controlfiles, achivelogs and redologs for the CDB and all PDB.

Note: The account that is going to execute the restore must have privileges to write files to the location that the files will be restored.

Startup Nomount

$rman
RMAN>connect target "c##oradbmaint/temp1234 as sysbackup"
RMAN>startup nomount
























Restore SPFILE

RMAN>restore spfile from '/orabkup/testdbs/rman/c-2422992650-20130807-00';








Shutdown and Startup Nomount

RMAN shutdown immediate
RMAN>startup nomount












Restore Controlfile

RMAN>restore controlfile from '/orabkup/testdbs/rman/c-2422992650-20130807-00';









Mount Database

RMAN>alter database mount;





Restore Database

RMAN>restore database;























You can see below that datafiles for the CDB and all PDBs are restored.
You can see below that datafiles for the CDB and all PDBs are restored.
You can see below that datafiles for the CDB and all PDBs are restored.
You can see below that datafiles for the CDB and all PDBs are restored.

Restore is complete

Recover Database

RMAN>recover database;








Open Database

RMAN>alter database open resetlogs;





Check PDBs

After the CDB is open the PDBs are in a mounted state and need to be open.

New feature in Database 12c RMAN is the ability to execute SQL command without the need to have SQL '<statement>'.

RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;














Open PDBs

RMAN>alter pluggable database all open;


Check PDBs

RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;















CDB and all PDBs have now been restore and recovered. CDB and all PDBs are now open for read write.


Recover and Restore PDB

In this restore we need to recover the PDB TSTDB due to a human error which all datafiles for PDB TSTDB were deleted.

Error from trying to open the PDB


Below you can see the files that need to be recovered

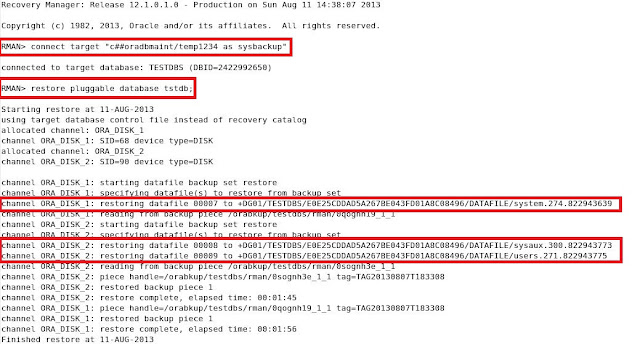

Restore PDB

You can connect to the container or directly to the PDB. In the example below I will be connecting to the CDB TESTDBS.

$rman
RMAN>connect target "c##oradbmaint/temp1234 as sysbackup"
RMAN>restore plugable database tstdb;

The restore will begin as you can see only the datafiles for pluggable database TSTDB are restored.


Recover PDB

RMAN>recover pluggable database tstdb;

Recovery will begin current archivelogs are already on disk so they do not need to be restored.
The archivelogs that are not on disk are restored and then used to complete the recover.









Check PDB

After the PDB is restored and recovered we must open the PDB for read write.

New feature in Database 12c RMAN is the ability to execute SQL command without the need to have SQL '<statement>'.

RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;

Open PDB

RMAN>alter pluggable database tstdb open;

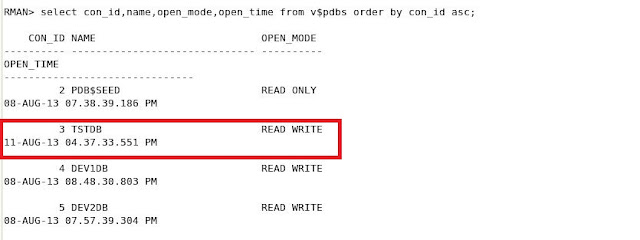

Check PDB

RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;

We now see the TSTDB PDB is open for read write.














Recover and Restore PDB Connected Directly to PDB

You may have a need to connect directly to the PDB to perform the recovery maybe for the reason that certain DBAs will support certain PDBs in a CDB.

Restore PDB

$rman
RMAN>connect target "c##oradbmaint/temp1234@tstdb as sysbackup"
RMAN>restore database;


















Note: If you get error RMAN-20021 or RMAN-06031 then exit RMAN and reconnect.

Recover PDB

RMAN>recover database;















Open PDB

RMAN>alter database open;






Check PDB

RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;

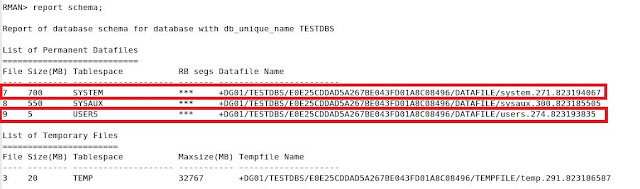

Report Schema

User report schema to review all tablespace and datafiles.

RMAN>report schema;







Recover PDB Tablespaces

We had another human error and the system and users tablespace datafiles for PDB TSTDB were deleted. We will perform a recover of the tablespaces for the TSTDB PDB.

Error


Report Schema to review the tablespaces needing recovery
You can see that the datafiles for tablespace SYSTEM and USERS in the PDB TSTDB is reporting zero.


Restore PDB Tablespace USERS

Note: PDB must be closed to restore tablespace

$rman
RMAN>connect target "c##oradbmaint/temp1234 as sysbackup"
RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;


















RMAN>restore tablespace tstdb:users;

We see that only the datafile for tablespace USERS in the TSTDB PDB is restored.











Recover PDB Tablespace USERS

RMAN>recover tablespace tstdb:users;

We see some of the archivelog are already on disk.
The archivelogs that are not on disk are restored and then used to complete the recover.















Restore PDB Tablespace SYSTEM

RMAN>restore tablespace tstdb:system;

We see that only the datafile for tablespace SYSTEM in the TSTDB PDB is restored.










Recover PDB Tablespace SYSTEM

RMAN>recover tablespace tstdb:system;

We see some of the archivelog are already on disk.

The archivelogs that are not on disk are restored and then used to complete the recover.














Open PDB

RMAN>alter pluggable database tstdb open;





Check PDB

RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;

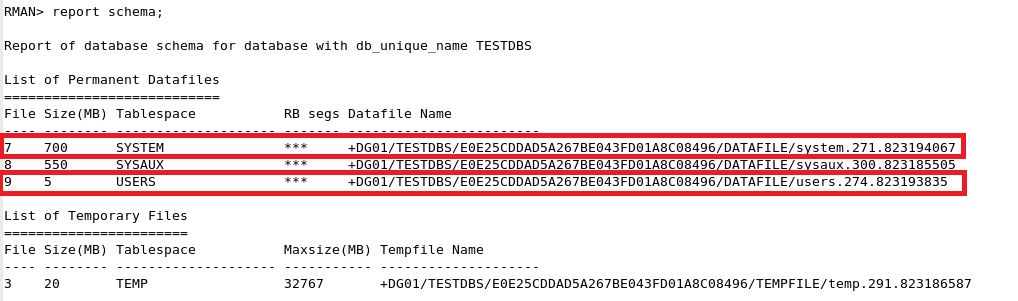

Report Schema

User report schema to review all tablespace and datafiles.

RMAN>report schema;

We can see that the datafiles for tablespace SYSTEM and USERS for PDB TSTDB are now report the total size.





















Recover and Restore PDB Tablespaces Connected Directly to PDB

You may have a need to connect directly to the PDB to perform the recovery maybe for the reason that certain DBAs will support certain PDBs in a CDB.

Restore PDB Tablespace USERS

$rman
RMAN>connect target "c##oradbmaint/temp1234@tstdb as sysbackup"
RMAN>restore tablespace users;

We can see that the datafile for tablespace USERS for PDB TSTDB is restored.

Recover PDB Tablespace USERS

RMAN>recover tablespace users;

We see some of the archivelog are already on disk.
The archivelogs that are not on disk are restored and then used to complete the recover.









Restore PDB Tablespace System

Note: If you get error RMAN-20021 or RMAN-06019 exit RMAN and reconnect directly to PDB.

RMAN>recover tablespace system;


Recover PDB Tablespace SYSTEM

RMAN>recover tablespace users;

We see some of the archivelog are already on disk.
The archivelogs that are not on disk are restored and then used to complete the recover.

Open PDB

RMAN>alter database open;

Check PDB

RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;










Report Schema

User report schema to review all tablespace and datafiles.

RMAN>report schema;













Restore and Recover Root Container


$rman target /
RMAN>startup mount
RMAN>restore database root;
RMAN>recover database root;
RMAN>alter database open;
RMAN>alter pluggable database all open;
RMAN>select con_id,name,open_mode,open_time from v$pdbs order by con_id asc;

Restore and Recover Seed Tablespace

$rman target /
RMAN>restore tablespace "PDB$SEED":"SYSAUX";
